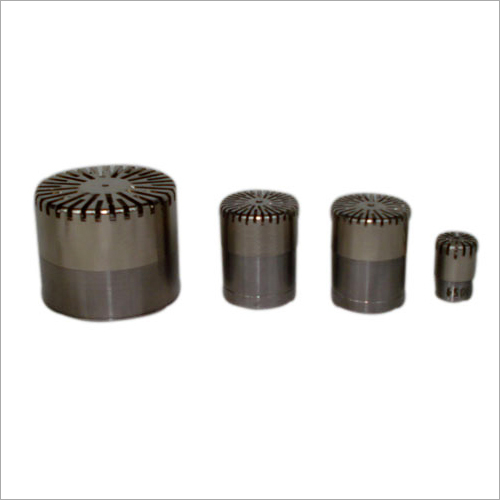

Measuring Microphone

Measuring Microphone
Measuring Microphone
Product Code : HY206J2
Product Description

It is the standard acoustical transducer for all sound and noise measurement. Our vision to excel and establish a strong foothold in the market has assisted us to evolve as a prominent manufacturer and supplier of Measuring Microphone. To manufacture this device, we use optimum quality materials and components. Offered microphone has a flat frequency response which is perfect for sound measurement or reference purposes. Measuring Microphone comes in different sizes and specifications as per the requirements of clients.

Features:

  • Low distortion
  • Very low internal noise
  • Wide dynamic range

DESCRIPTION:

  • Diameter: 12.7mm (1/2inch)
  • Sensitivity: 50mV/Pa
  • Frequency response range: 4-20k Hz
  • Dynamic range15-146 dB
  • Precision: in accordance with IEC ”2”-type standard
  • Electret condenser microphone
  • Temperature range: -40-+60℃
  • Response: sound pressure field
  • Polarizing voltage: 0v

Feature:

  • general acoustic measurement
  • Dimensions, installation size and main properties meet the requirements of IEC61094-4. Dynamic range is from A-weighted background noise to 3% distortion limit.
  • Reference sound pressure is 20µPa

Category

Measuring microphone

MOQ

10

Unit

Piece

Product Group

Guangzhou Baiyun Airport

Supply ability/month

1000

Whether to provide samples

No

Delivery

60days

Packaging Detail

Wooden box

Payment mode

L/C

DESCRIPTION:

  • Diameter: 12.7mm (1/2inch), 6.35mm (1/4inch),
  • Sensitivity: 12.5mV/Pa, 4mV/Pa, 1mV/Pa, 0.4mV/Pa, 2mV/Pa
  • Frequency response range: 4-10k Hz, 10-70k Hz, 10-50k Hz, 10-31k Hz
  • Dynamic range 20-155dB, 40-164dB, 50-170dB
  • Precision: in accordance with IEC ”2” "1"-type standard
  • Electret condenser microphone
  • Temperature range: -40-+60℃
  • Response: sound pressure field
  • Polarizing voltage: 0v

Feature:

  • high sound pressure environment acoustic measurement
  • Dimensions, installation size and main properties meet the requirements of IEC61094-4. Dynamic range is from A-weighted background noise to 3% distortion limit.
  • Reference sound pressure is 20µPa.

Category

Measuring microphone

MOQ

10

Unit

Piece

Product Group

Guangzhou Baiyun Airport

Supply ability/month

100

Whether to provide samples

No

Delivery

90days

Packaging Detail

Wooden box

Payment mode

L/C
